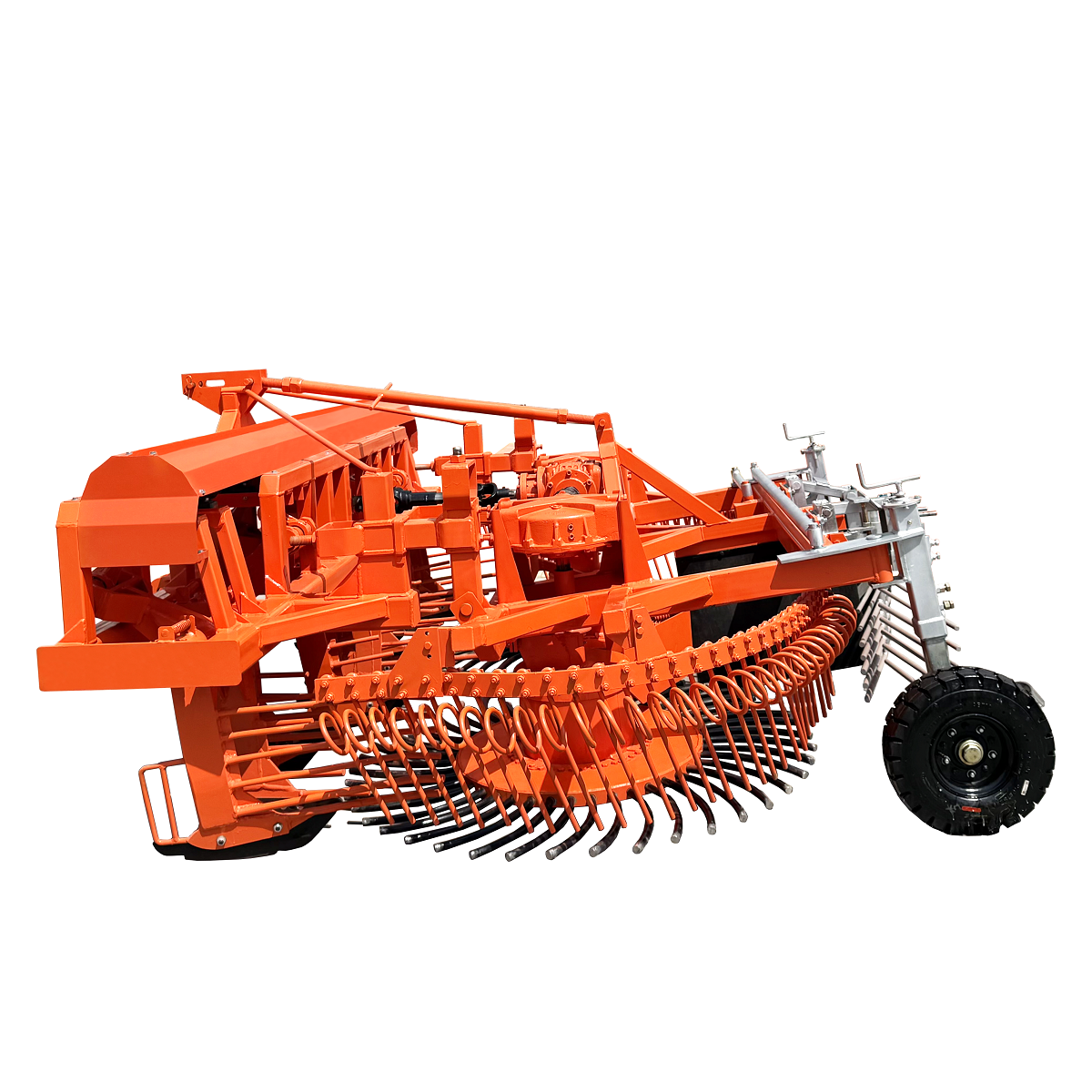

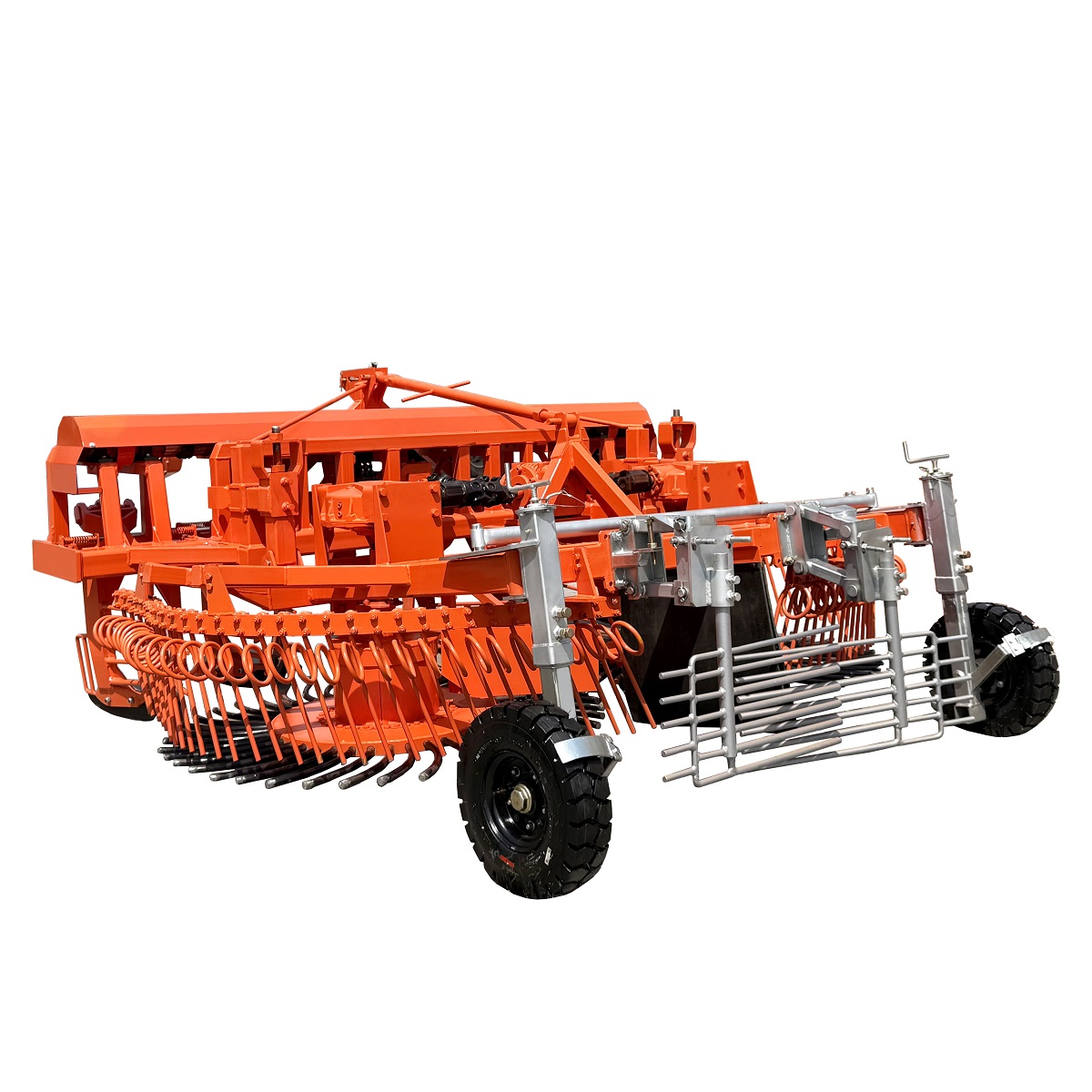

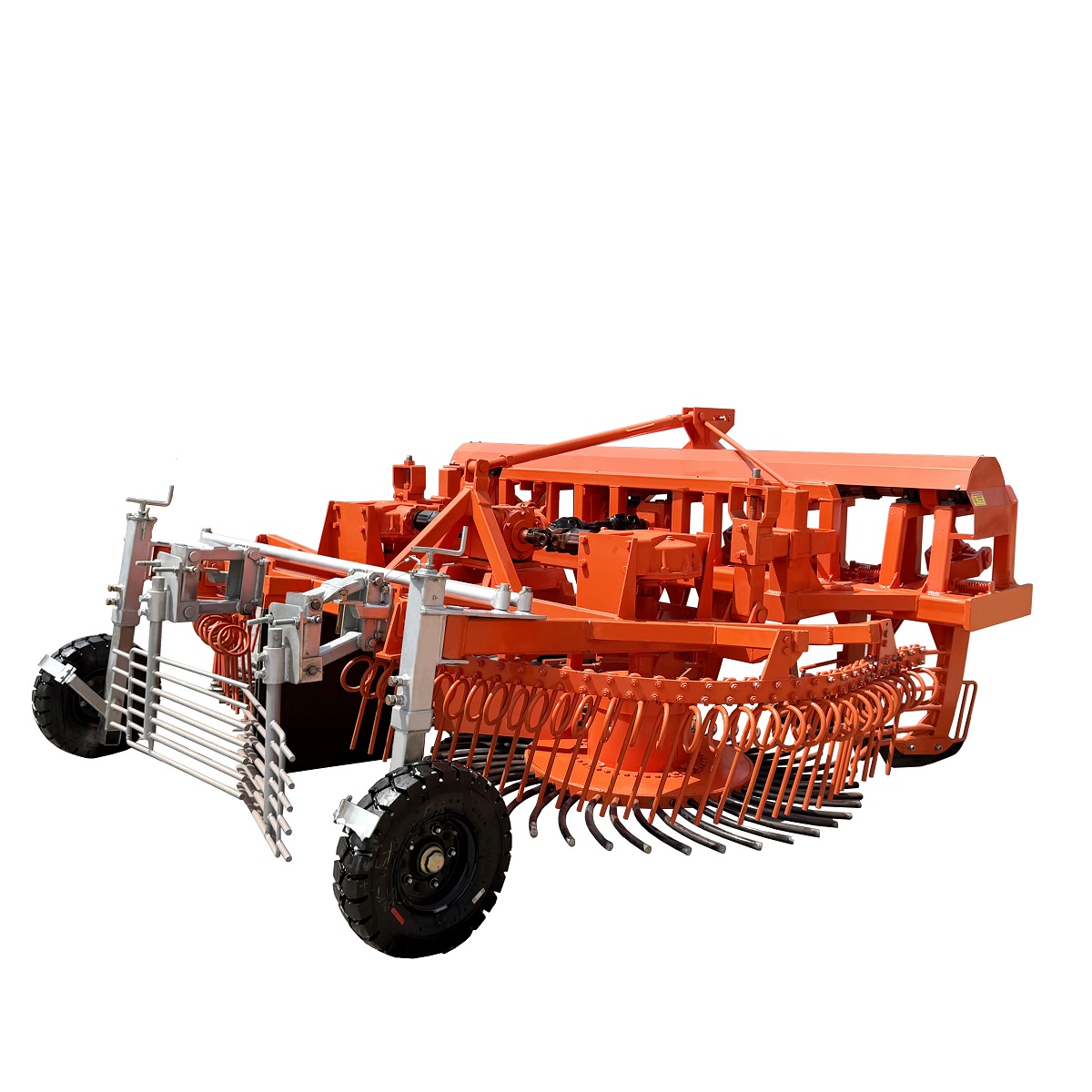

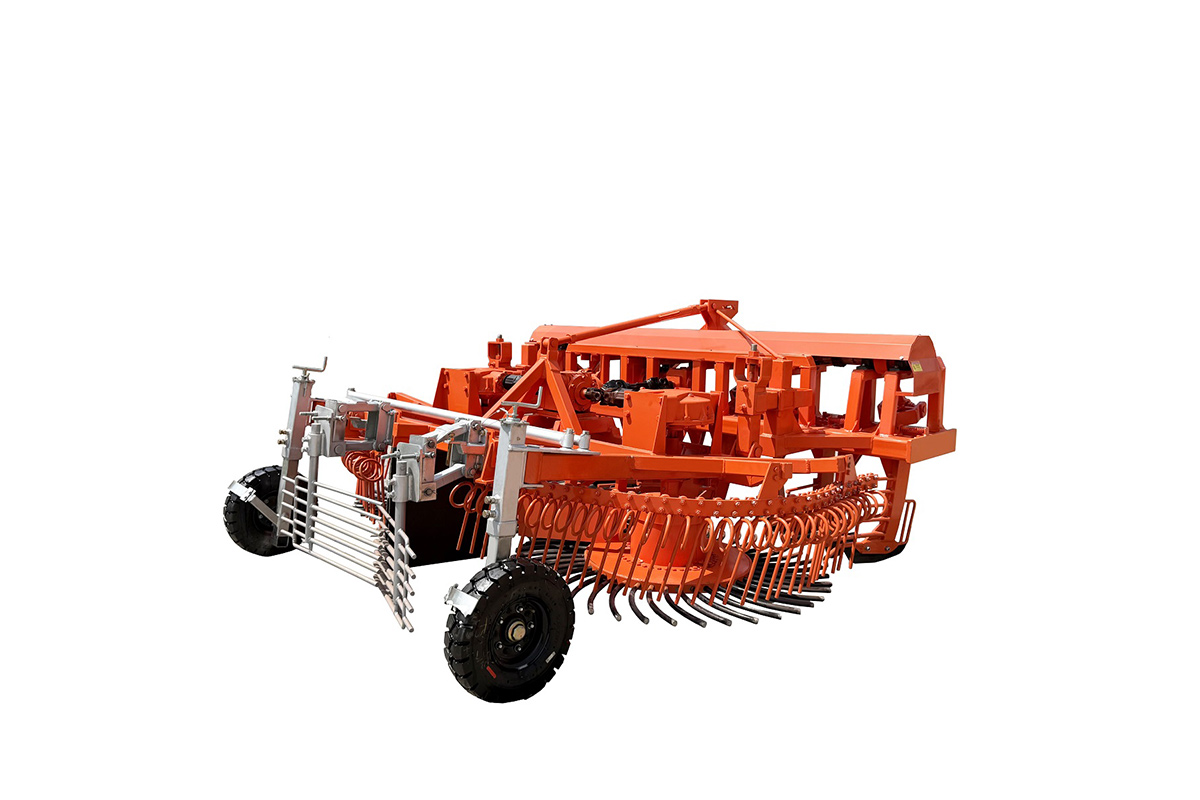

The harvesting mature sugar beet tubers. Designed for 50 cm row spacing planting patterns, it can simultaneously harvest six rows with exceptional efficiency, integrating all key harvesting processes into a single, streamlined operation.
Operation Mechanism: The machine employs a reciprocating plow blade system that loosens soil underground, lifts beets, and removes soil and impurities through a combination of rotary sieve and screening rollers. The cleaned beets are then automatically transported and loaded, creating a seamless harvesting workflow from soil to storage.
Structural Design Highlights: 1) Reinforced Rotary Sieve – Featuring an optimized structure with precision-engineered hexagonal sieve that ensures 98% impurity removal efficiency while effectively collecting all tubers. 2) High-Durability Plow Blades – Constructed with wear-resistant WC-Co alloy materials, these blades offer extended service life and reliable performance even in challenging soil conditions. 3) Compact Machine Configuration – Designed with a flexible steering system and adaptive suspension that provides excellent maneuverability and terrain adaptability.
Performance Advantages: 1) High-Efficiency Harvesting – Integrates excavation, picking, cleaning, lifting, conveying, film separation, stem/leaf removal, and loading into one continuous operation, significantly boosting productivity by reducing processing time by up to 40%. 2) Row Spacing Adaptability – Precisely engineered for 50 cm row spacing, compatible with machine-transplanted, manually mulched, and direct-seeded sugar beet cultivation methods. 3) Soil and Terrain Versatility – Performs effectively across various soil types including clay, sandy, and rocky soils, maintaining consistent performance and tuber integrity (>95%) in all conditions.
Advanced Technological Features: Equipped with intelligent systems including automatic soil moisture detection, variable speed control based on crop density, and real-time monitoring of harvesting parameters. The machine’s modular design allows for quick component changes to adapt to different crop varieties and field conditions, maximizing operational flexibility.

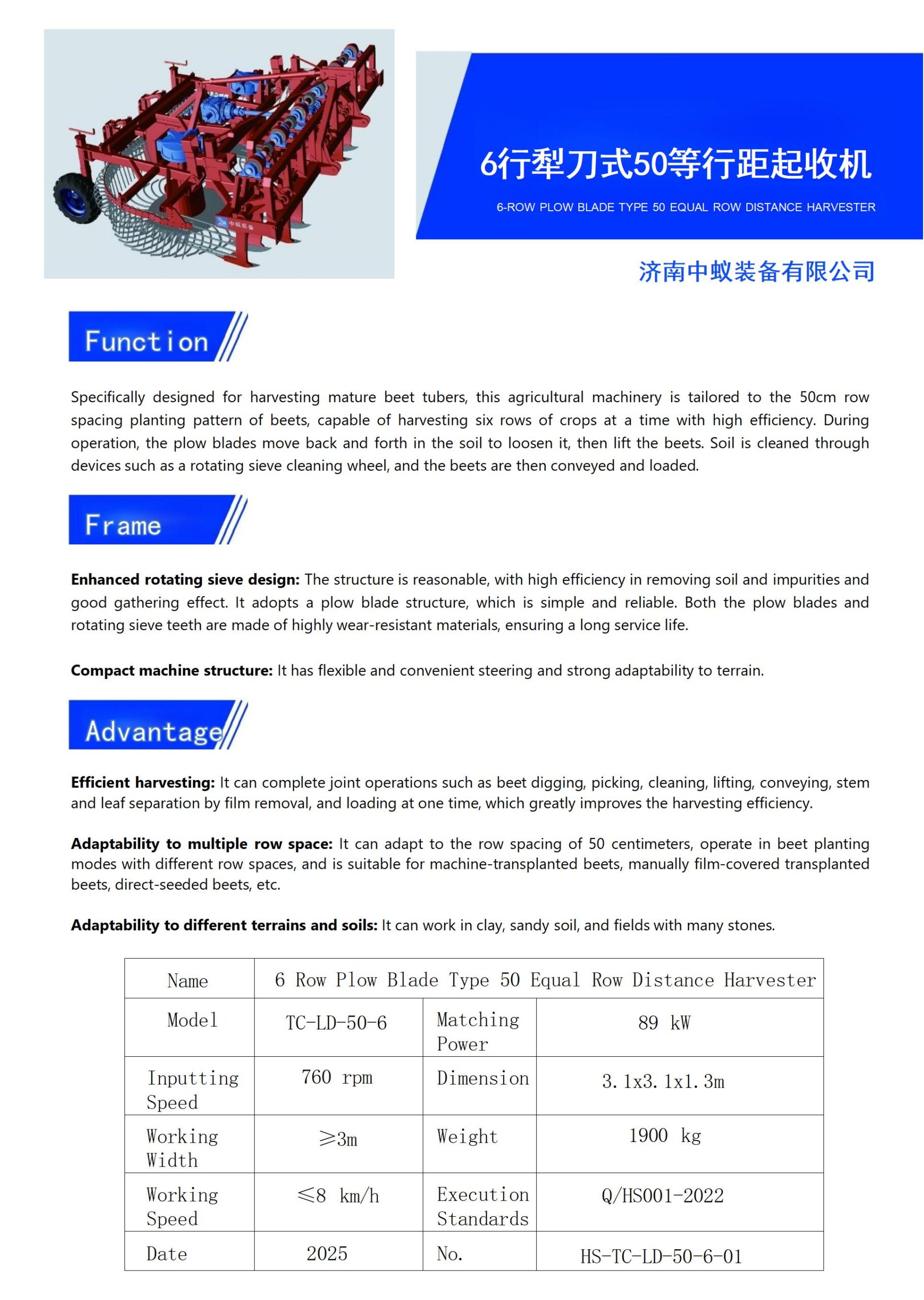

Basical parameters of six row plow blade 50 equal spacing lifting and pulling machine:
This sugar beet harvesting equipment can be regarded as an efficient tool in field operations, redefining the standards of sugar beet harvesting with its outstanding performance. In field work scenarios, it demonstrates extremely strong operational capabilities, easily completing the harvesting task of hundreds of acres of sugar beets in a single day, significantly reducing the time cost under traditional harvesting modes and bringing significant efficiency improvements to large-scale growers.
By below picture you could see we attend exhibit home and abroad, the beet harvester series machine, takes center stage! Designed for farms and beet growers, it integrates washing, peeling, slicing, and dewatering in one seamless workflow—slashing labor costs by 60% and boosting output to 500kg/h. Crafted with premium function parts, it ensures hygiene and durability. The touchscreen control allows easy parameter adjustment for different beet sizes. You could visit anytime and explore how this machine elevates your beet processing efficiency!
